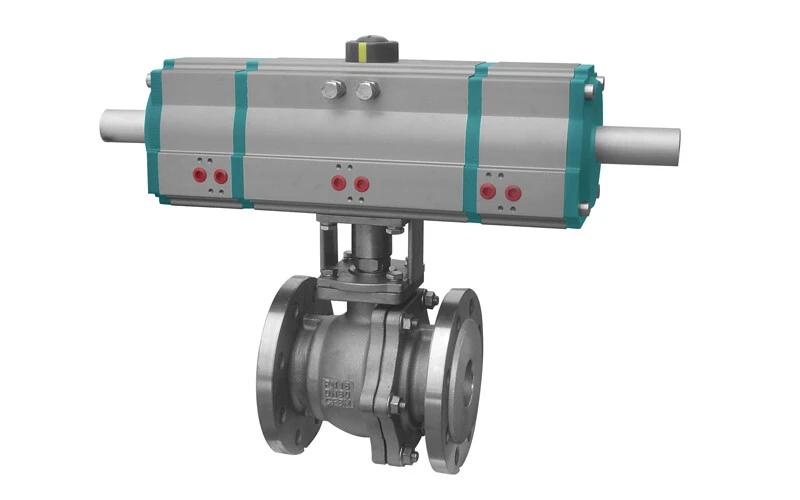

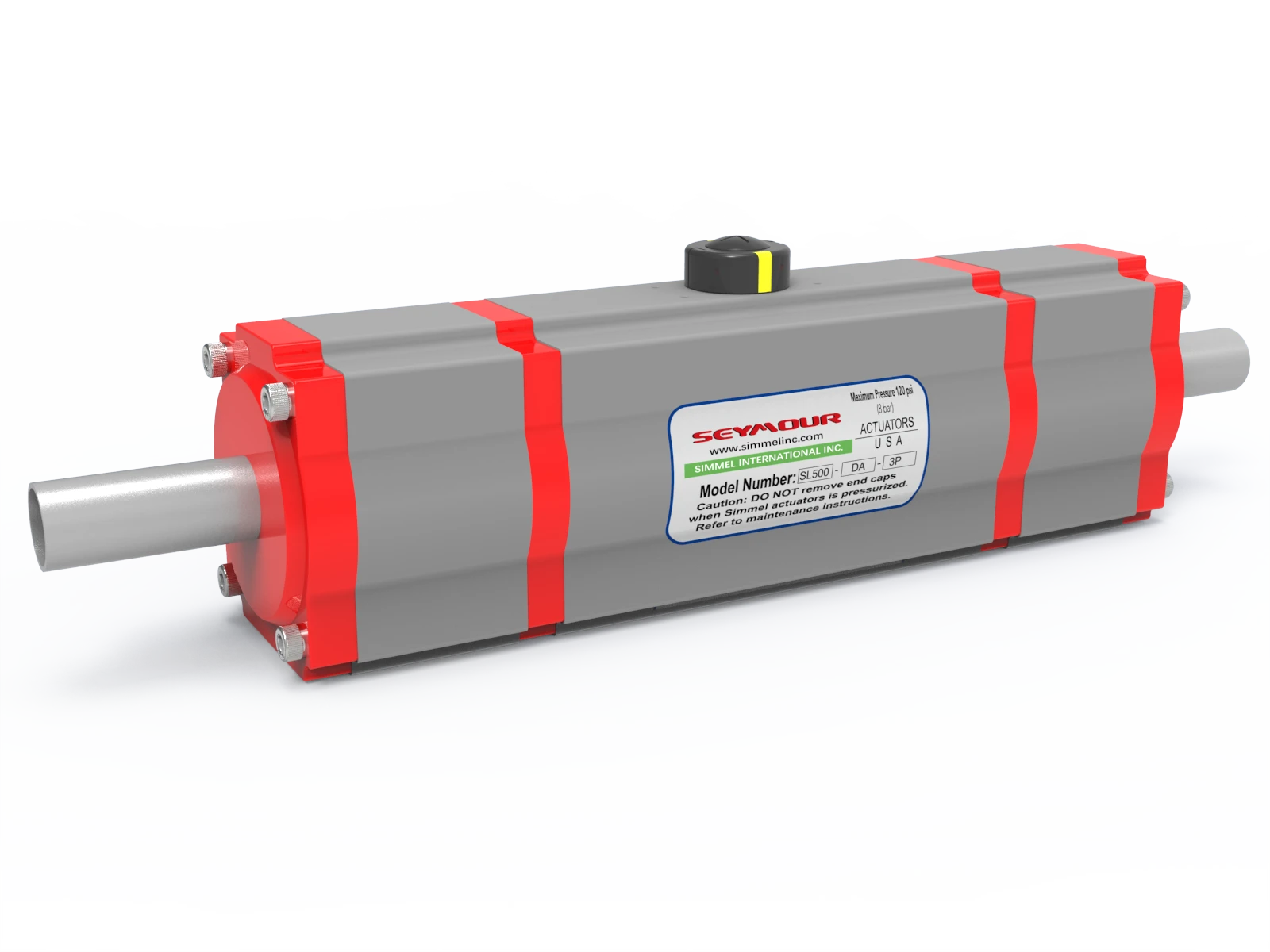

Three pistons Actuators

SIMMEL three-stage actuators are widely used in industries such as petrochemicals, pharmaceuticals, food, and filling.

Technical Parameter

Output Torque:
Control Options:
Operating Temperature:
Air Supply Pressure:
Operating Media:
Travel adjustment:
Certifications
Valve Compatibility

Double Acting 106 to115,272 in-lb (12 to 13,024 Nm)

Spring Return 97 to 58,273 in-lb (11 to 6,584 Nm)

On-Off, Throttling,

Double Acting, Spring Return

Standard (NBR O-ring): -4°F ~ 175°F

Low Temperature (L NBR O-ring): -30°F ~ 175 °F

High Temperature (Viton O-ring): 5°F ~ 300°F

The minimum supply pressure is 30 psi.

The maximum supply pressure is 145 psi.

Dry and lubricated air, or non-corrosive gas.

The maximun particle diameter must be less than 40μm.

Have adjustment range of ± 5° at 0° and 90° position.

ISO, CE, ABS, ATEX, PED, SIL 3

Butterfly Valves, Ball Valves, Plug valve, Damper

微信图片_20250610234011

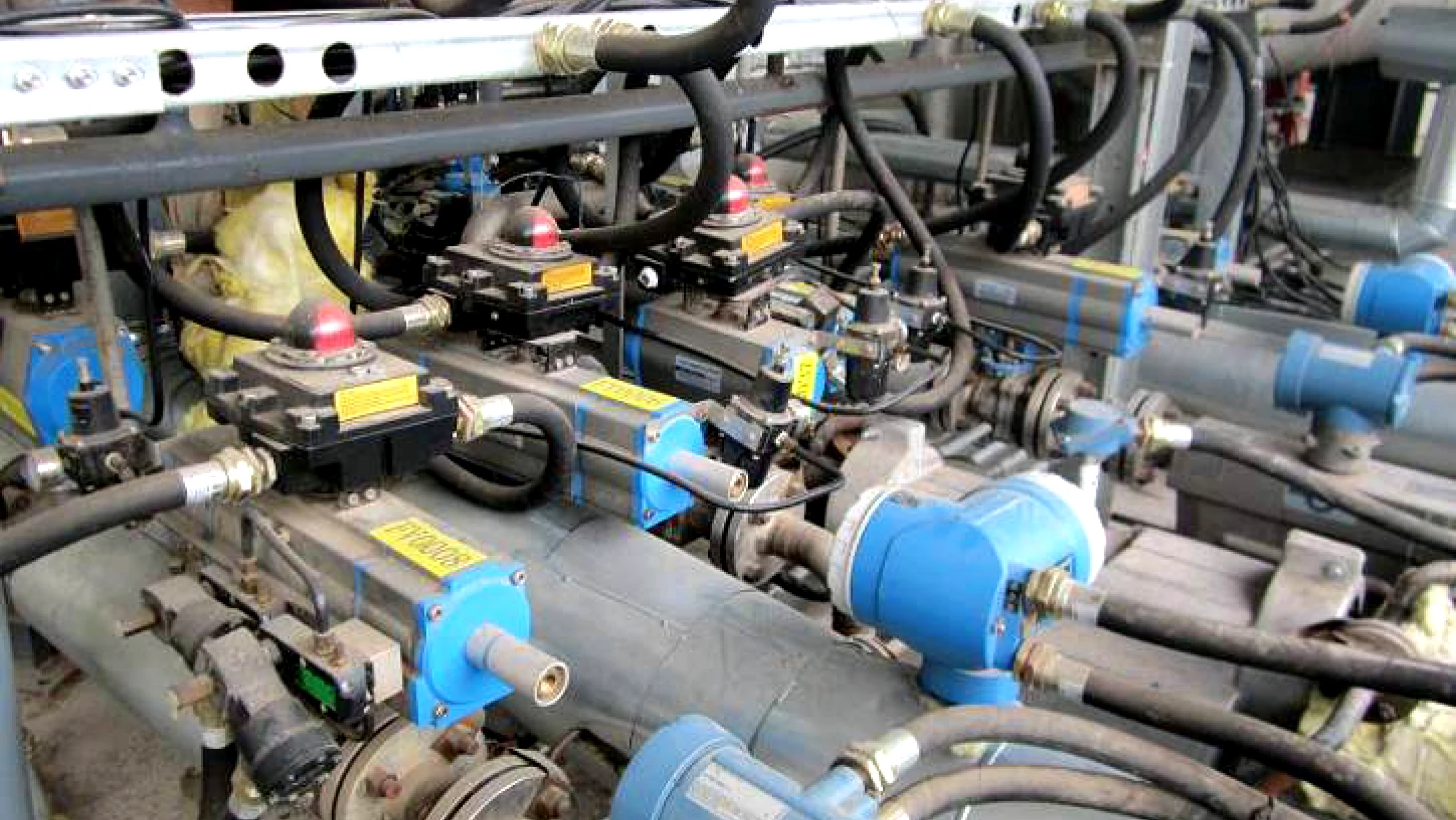

Application

  • Oil
  • Chemical industry
  • food
  • pharmaceutical production
  • canning
  • metering

Product

Simmel specializes in designing and developing high-performance flow automation control systems, including actuators, butterfly valves, ball valves, limit switch boxes, solenoid valves, and control accessories.

SIMMEL can provide you with customized actuator solutions.
