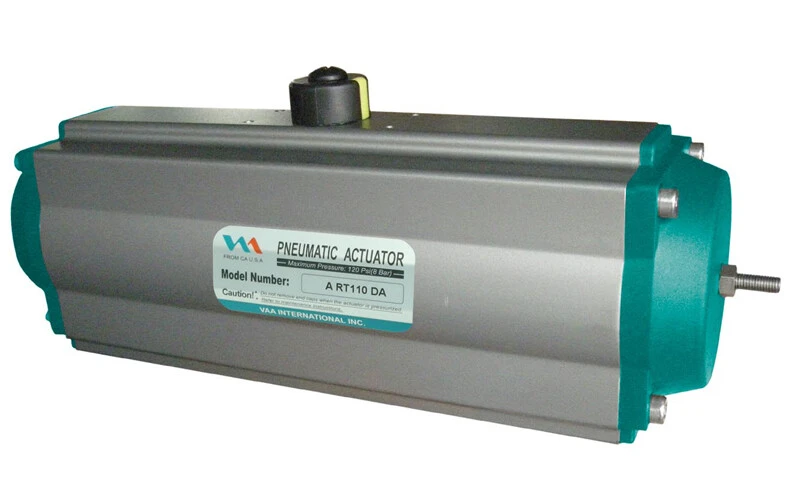

ART Pneumatic Actuator

Discover the ART Pneumatic Actuator with double acting and spring return options, offering output torque from 106 to 115,272 in-lb. Ideal for industrial applications with a temperature range of -40°F to 300°F.
ART Pneumatic Actuator
  • ART Pneumatic Actuator
  • ART Pneumatic Actuator
  • ART Pneumatic Actuator
  • ART Pneumatic Actuator
  • ART Pneumatic Actuator
  • ART Pneumatic Actuator

ART Pneumatic Actuator

High Perfomance Pneumatic Actuator
Output Torque
Double Acting 106 to115,272 in-lb (12 to 13,024 Nm)
Spring Return 97 to 58,273 in-lb (11 to 6,584 Nm)
Temperature Range
-40°F to 300°F (-40°C to 150°C)
Inlet Supply Pressure
Up to 120 psig (8 Bar)

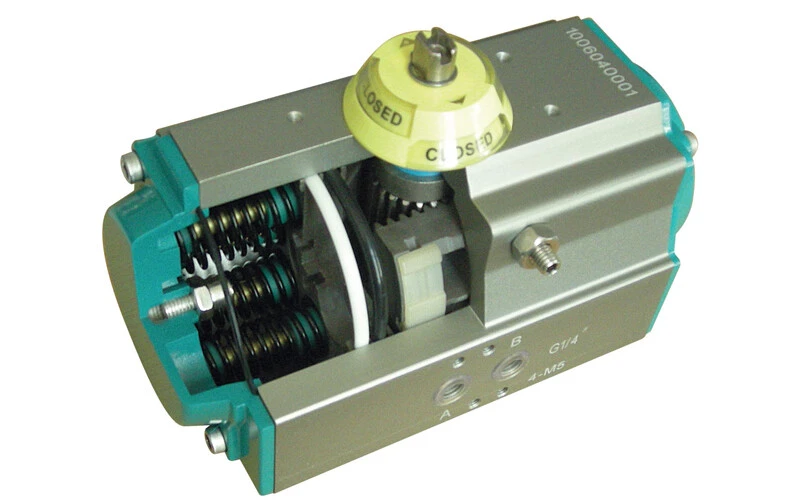

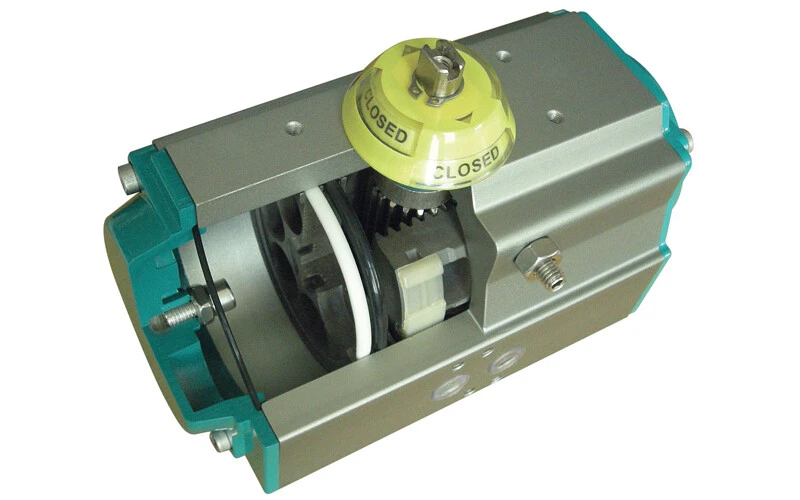

Type Double Acting  Spring Return

Technical Parameter

Output Torque:
Control Options:
Operating Temperature:
Air Supply Pressure:
Operating Media:
Travel adjustment:
Certifications
Valve Compatibility

Double Acting 106 to115,272 in-lb (12 to 13,024 Nm)

Spring Return 97 to 58,273 in-lb (11 to 6,584 Nm)

On-Off, Throttling,

Double Acting, Spring Return

Standard (NBR O-ring): -4°F ~ 175°F

Low Temperature (L NBR O-ring): -30°F ~ 175 °F

High Temperature (Viton O-ring): 5°F ~ 300°F

The minimum supply pressure is 30 psi.

The maximum supply pressure is 145 psi.

Dry and lubricated air, or non-corrosive gas.

The maximun particle diameter must be less than 40μm.

Have adjustment range of ± 5° at 0° and 90° position.

ISO, CE, ABS, ATEX, PED, SIL 3

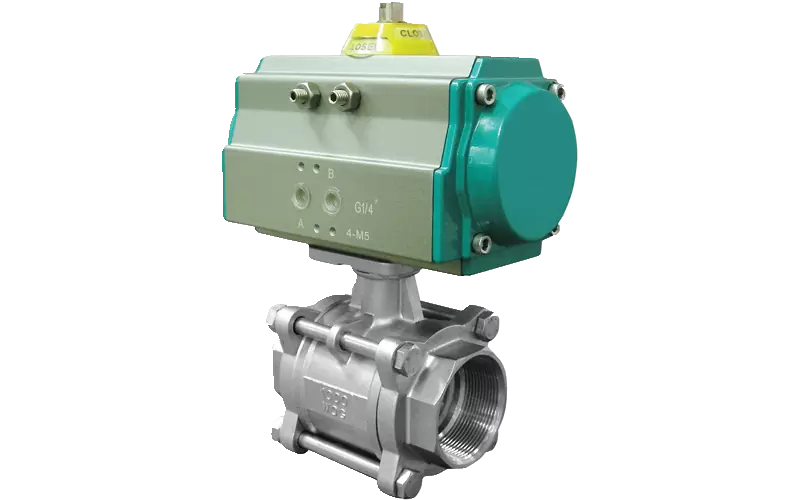

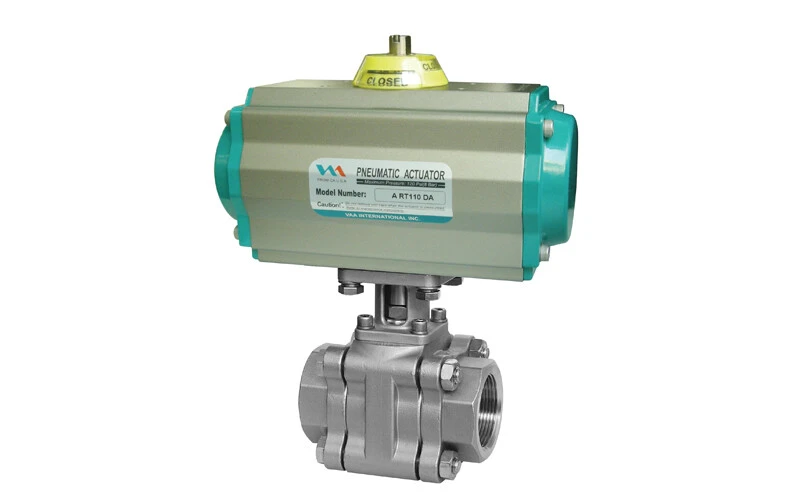

Butterfly Valves, Ball Valves, Plug valve, Damper

SIMMEL can provide you with customized actuator solutions.
