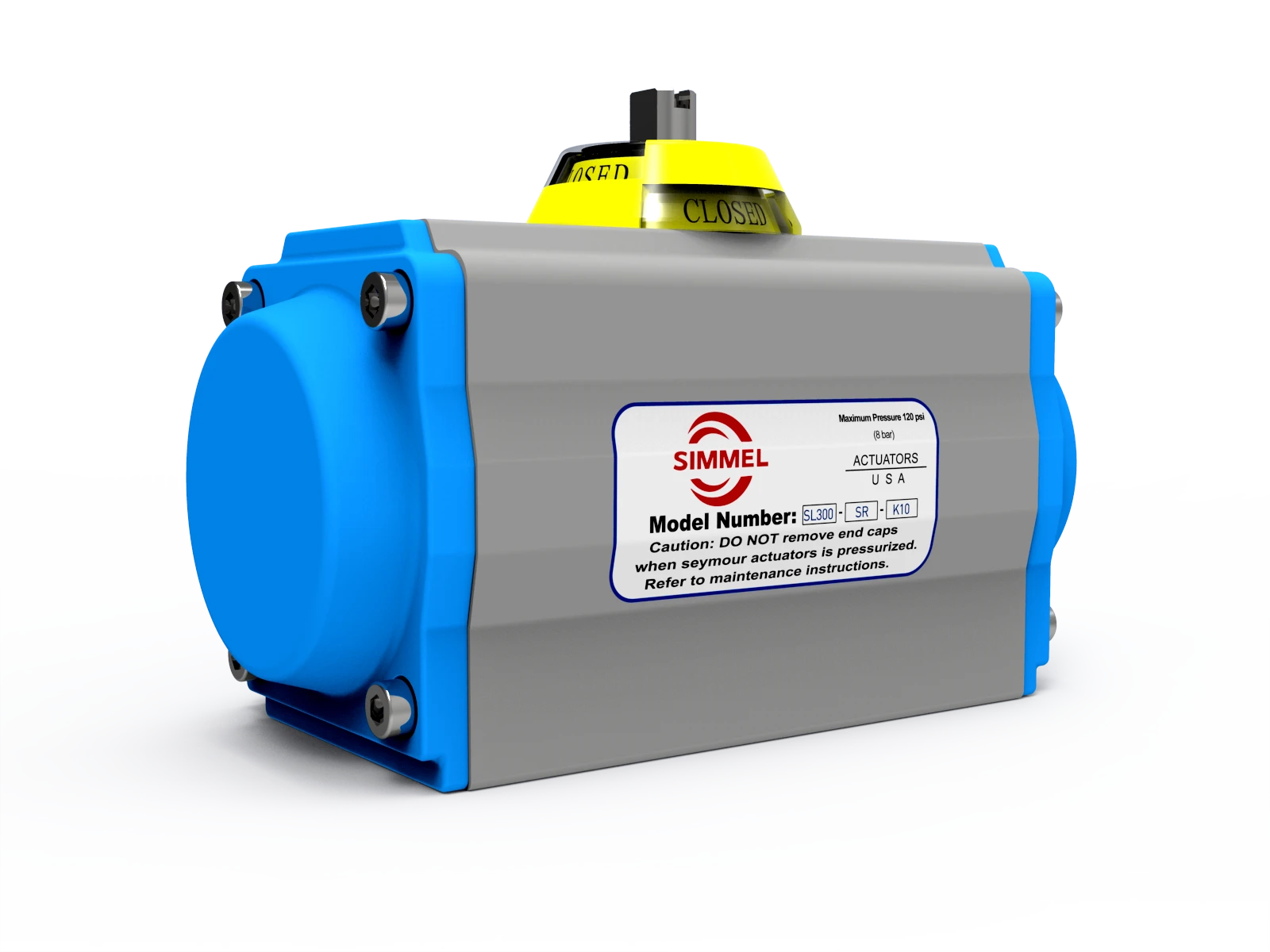

SL Pneumatic Actuator

SIMMEL  SL series actuators are made of American standard aluminum alloy material with high-precision extrusion molding, using globally leading high-precision CNC machining technology and special mold technology for natural rubber sealing rings, providing dynamic sealing service life. The gear shaft and rack piston have been optimized for modulus structure data processing, resulting in higher operating frequency, higher precision control valve operation, and longer service life.

Output Torque:

Double Acting 106 to115,272 in-lb (12 to 13,024 Nm)

Spring Return 97 to 58,273 in-lb (11 to 6,584 Nm)

Control Options:

On-Off, Throttling,

Double Acting, Spring Return

Temperature Range:

-40°F to 300°F (-40°C to 150°C)

Maximum Allowable Operating Pressure

Up to 120 psig (8 Bar)

Certifications

ISO, CE, ABS, ATEX, PED, SIL 3

Valve Compatibility

Butterfly Valves, Ball Valves, Plug valve, Damper

0

Size

0

Maximum air pressure ( psi )

0

Low temperature ( -℉ )

0

High temperature ( +℉ )

10000

Cycle period

SIMMEL can provide you with customized actuator solutions.
